Description
Chromium carbide bimetal plates are made in many factors that affect the performance of surfacing composite wear liners:
Chrome plays a major role in the corrosion resistance of the surfacing composite wear-resistant liner
Chromium is the main element that determines the corrosion resistance of the wear-resistant composite wear-resistant lining, because chromium in the steel can make the surfacing composite wear-resisting lining plate passivate in the oxidizing medium, ie it forms a thin layer on the surface. The membrane is enriched with chromium in this membrane. The higher the chromium content in the steel, the stronger the corrosion resistance.
Our chromium carbide bimetal plates are made of welding wire with a design content of Cr28, which has a high content of Cr.
Technical Details
Chemical composition: Cr 15-30% C 3.5-5% Si 0.5-1.5% Mn 0.5-2.5%
Size: width≤1500mm, length≤3500mm
Normal Thickness: 6+4, 8+6, 10+8, 10+10, 12+10, etc
Wear layer thickness: 4-20mm
Hardness: 55-62HRC
Installation
1.Bolting. Bolts can also be welded to the base material of the sheets and then welded to other pieces, or they can be cut into the wear-resistant steel sheets and joined to other pieces with bolts.
2. Welding. The base material of large-scale compound steel plate is a steel plate with excellent welding capability. When two steel plates need to be connected together, the base material behind can be welded together first, and then filled with the corresponding overlay welding rods to make up the overlay layer in the front. Wear-resistant steel plate can also be welded together with other steel constructions
3. Socket welding. It can be used plasma or carbon arc gas planer to make holes in the wear-resistant steel plate and connect other steel structure pieces by the plug welding

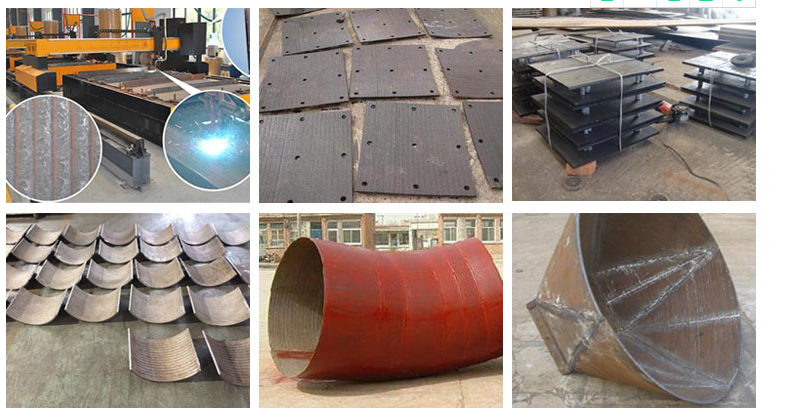

Work Place
Why Choose Qishuai Company?
1. We are the manufactory.
2. A professional team of engineers, Sales team and after service.
3. have a factory and very competitive price.
