Description

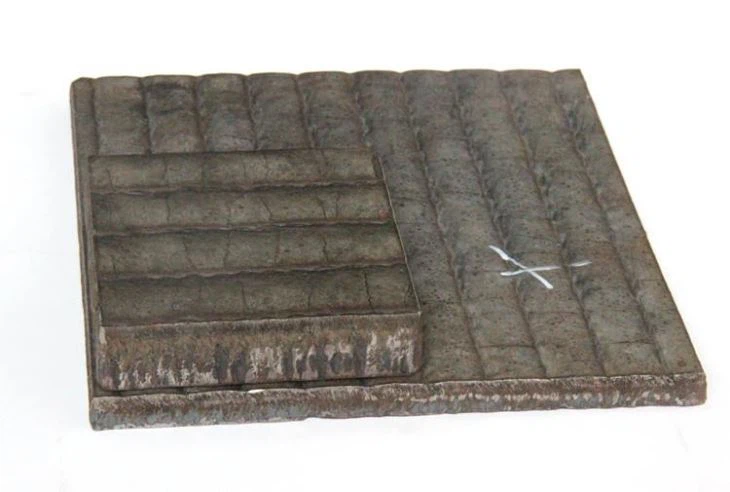

Wear resistant composite steel plate is a composite wear-resistant laminate composed of up to 40-60% of a chromium carbide alloy on an appropriate steel substrate by means of an arc. The material of the overlay welding layer is uniform and the appearance is regular. The carbides in the wear-resistant layer metallographic structure are distributed in a fibrous manner and are perpendicular to the surface. The surface hardness can reach over HRC55.
The composite steel plate with a high content of chromium carbide is resistant to corrosion, and is suitable for extremely worn environments.
Technical details
1. Grade: Q235+Chromium Carbide Overlay layer
2. Size: customised
3. Standard: Enterprise standard
4. Certification: ISO9001:2015
Production Technique | Open arc welding |
Overlay | Chromium carbide overlay |
Fusion line | well bonding, the overlay will penetrate into base plate about 0.8mm to 1.8mm |
Hardness | HRC 55 -62 |
Thickness Tolerance | ±3mm/m |
Quality Control:
The main ingredients are C(%) :3.0-5.0 and Cr(%):15-30. This chemical proportion results in a large amount of Cr7C3 chrome carbide hard particles. The micro-hardness (up to HV1800) of these particles throughout the layer will guarantee a super wear resistant surface.
