Descriptions

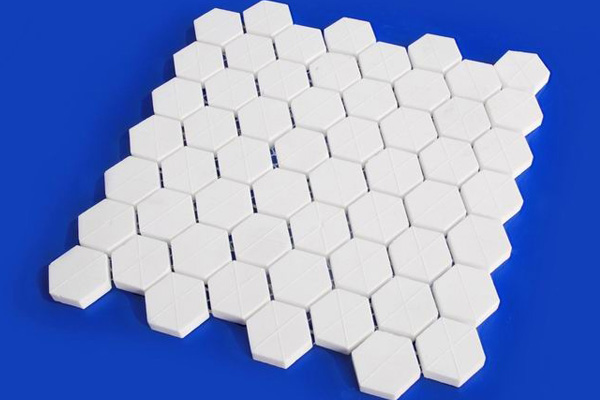

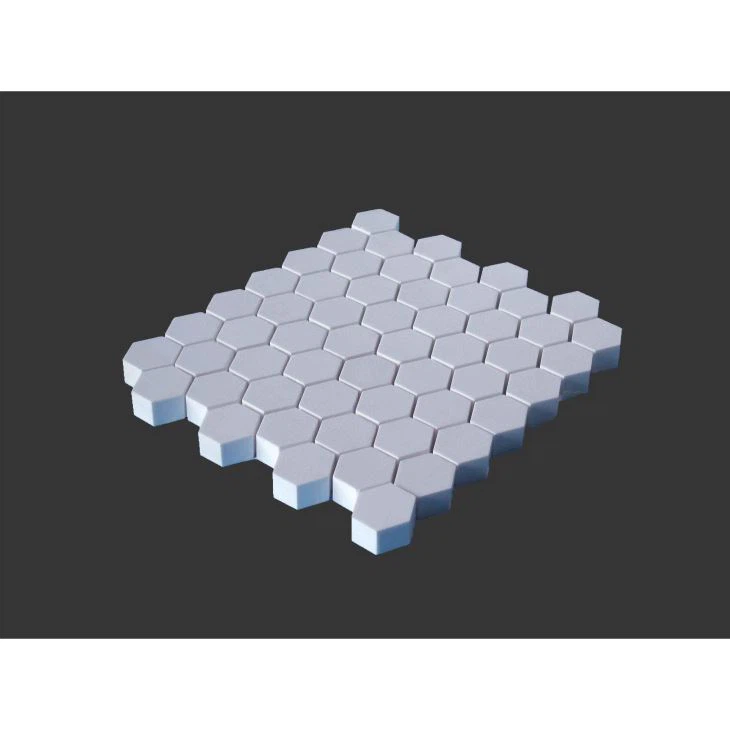

Wear resistant ceramic mat is a kind of wear resistant products and it consist by 92% alumina or 95% alumina.Mostly ceramic mat are used in some wear resistant equipments and industries.Alumina ceramics is a ceramic material with alumina (Al2O3) as the main body and used in thick film integrated circuit. Alumina ceramics has good conductivity, mechanical strength and high temperature resistance. It should be noted that ultrasonic is needed for washing. Alumina ceramics is a kind of widely used ceramic, because of its superior performance, the application of modern society has become more and more extensive, to meet the needs of daily use and special performance.
Mainly sizes of the ceramic mat
150*150*6mm
150*150*12mm
150*150*13mm
200*200*5mm
200*200*6mm
300*300*6mm
500*500*10mm
All kinds of sizes are available.
Details
| Performance Index | 92 Series | 95 Series |
| Al2O3(%) | ≥92 | ≥95 |
| Moh’s Hardness | 9 | 9 |
| Water Absorption Rate(%) | ≤0.02 | ≤0.015 |
| Fracture Toughness(Mpa) | 3.65 | 3.75 |
| Bending Strength(Mpa) | 255 | 275 |
| Bulk Density(g/cm3) | ≥3.60 | ≥3.65 |
