As a professional wear protection products production and suppliers, we can promptly provide you with a scheme to solve the problem of wear and tear, according to the actual working condition, choosing the proper wear-resistant materials and connection mode, optimize the product design, stable high quality factory and field construction, the consummation post-sale service, help you to improve the operation efficiency and service life of the equipment.

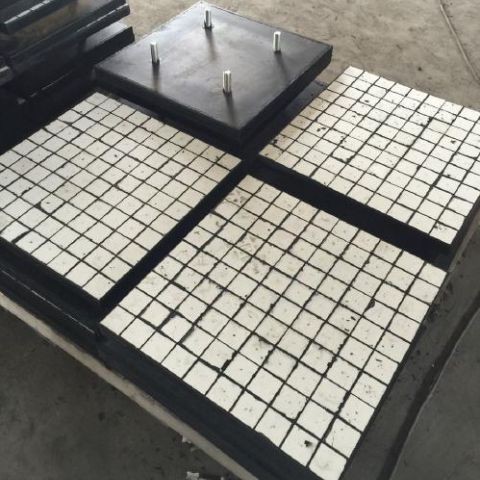

The ceramic rubber lining plate combines the wear resistance of 92% Al2O3 ceramics and the impact resistance of rubber, which can effectively protect. The density of ceramic is only half of that of steel, so the ceramic rubber lining can greatly reduce the load of the equipment.
It has 2 forms, rubber+ceramic (Two-in-One) & metal+rubber+ceramic (Three-in-One).
Two-in -One lining is fixed on the inner shell of the equipment by pasting to form a strong and buffer wear-resistant layer.
Three-in-One lining is fixed by bolting.
Our Ceramic Rubber Lining normally uses hexagonal ceramics to prevent the ceramics from falling off due to the scouring of the glue seams. In the case that the customer does not specify the requirements, our company generally recommends hexagonal ceramic ceramic rubber linings.In this case, the service life of our ceramic rubber lining is 3-5 times longer.
| Technical Data of Ceramic | |
| Items | Index |
| Alumina content | ≥92% |
| Bulk Density | ≥3.6g/m³ |
| Rockwell Hardness(HRA) | 80-90 |
Compressive Strength | ≥850MPa |
| Fracture Toughness | ≥4.8MPa.M1/2 |
| Bending Strength | ≥290MPa |
| Technical Data of Rubber | |
| Items | Index |
| Tensile Strength | ≥12MPa |
| Break Extension | ≥300% |
| Shore A hardness | 55±5 |
Break Permanent Deformation | ≤24% |
Rubber and Ceramic Adhesion Force (shearing stress) | ≥3.0MPa |
Temperature Resistance | ≤100℃ |
Our ceramic rubber lining has been applied in the following locations.
1. Mining industry：Primary break transfer chute, medium break transfer chute and fine break transfer chute, and hoppers
2. Steel industry : Blast furnace hoppers and cylindrical mixers
3. Coal chemical industry: Coal falling pipe
4. Thermal power industry: Bucket wheel stacker reclaimer cylinder and wheel、Belt head hopper、Raw coal hopper、Coal feeder ram、Coal drop pipe and Coal mill exit inclined pipe
5. Chemical industry: Chute
6. Cement industry: Raw chute and Clinker chute
7. Port : Ship unloader hopper
8. Machinery industry: Hoppers
9. Organic silicon industry: Grade one cyclone dust collector,Grade two cyclone dust collector and Grade three cyclone dust collector
Ceramic rubber lining is packaged according to customer specified packaging form or customer confirmed packaging form. Our company can provide pallet packaging and box packaging.
Our company is professional for coal, steel, cement, mining mineral processing, coal cleaning and other industries to provide wear-resistant equipment and components of professional manufacturers, is the most ability of wear-resisting pipe fitting design, production enterprises. Our company has the professional engineering technical personnel, can provide the anti-wear integration solution for the relevant industry.
