Product Description:
Items | Index |

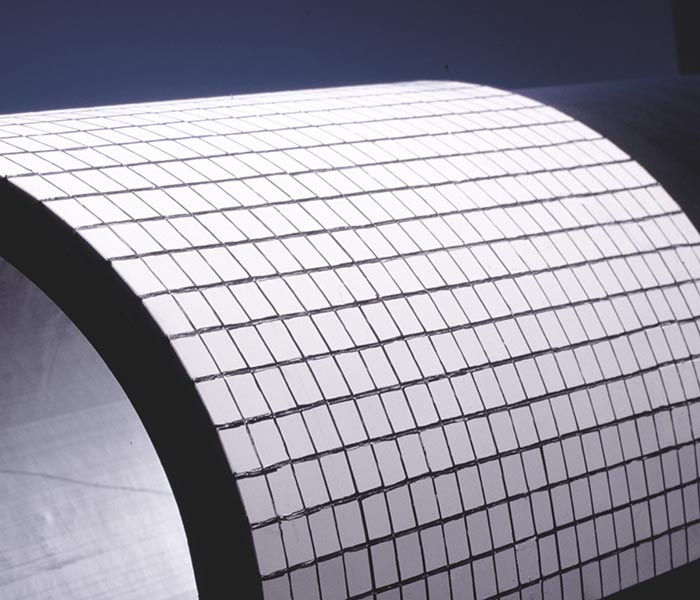

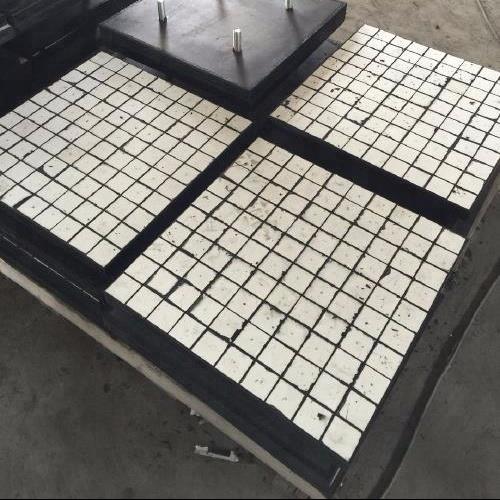

Name | Rubber Ceramic Wear Plate Liner |
Alumina content | ≥92% |
Bulk Density | ≥3.63g/cm³ |
Rockwell Hardness (HRA) | ≥90 |
Compressive Strength | ≥850MPa |
Fracture Toughness | ≥4.8MPa.M1/2 |
Bending Strength | ≥290MPa |
Thermal Conductivity 20℃ | 20W/m.k |
Coefficient of Thermal Expansion | 7.2×10-6m/×m.k |
| Young's Modulus 20℃ | 277GPa |
Shear Modulus 20℃ | 113GPa |
Surface Finish: As Fired | 1.27mm |
Color | White |
Features of Rubber Ceramic Wear Plate Liner:
1.Synthetic rubber
2.Electrostatic prevention
3.Flame resistant
4.Exceptionally high abrasion resistance and modulus
5.Exceptional grip
6.Exceptional wear resistance
7.Will not prematurely harden
8.Bonding layer
9.Press cured using high temperature and pressure
Standard Size of ceramic pulley lagging :
Size | Length (mm) | Width(mm) | Ceramic thickness (mm) | Rubber thickness (mm) |
800×500×16mm | 800 | 500 | 8 | 8 |
800×500 ×17mm | 800 | 500 | 8 | 9 |
800x500×18mm | 800 | 500 | 10 | 8 |
800×500×19mm | 800 | 500 | 10 | 9 |
800x500×20mm | 800 | 500 | 12 | 8 |
800x500×21mm | 800 | 500 | 12 | 9 |
