Description

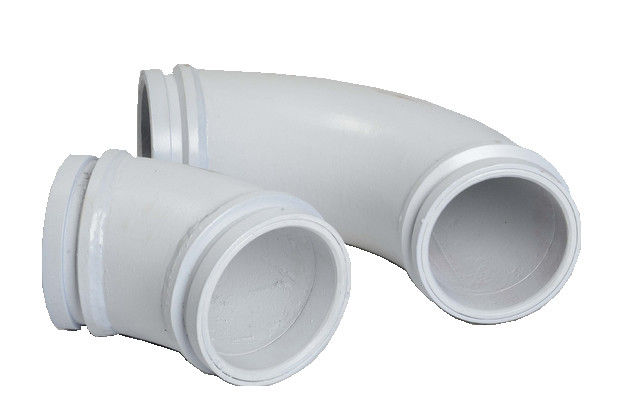

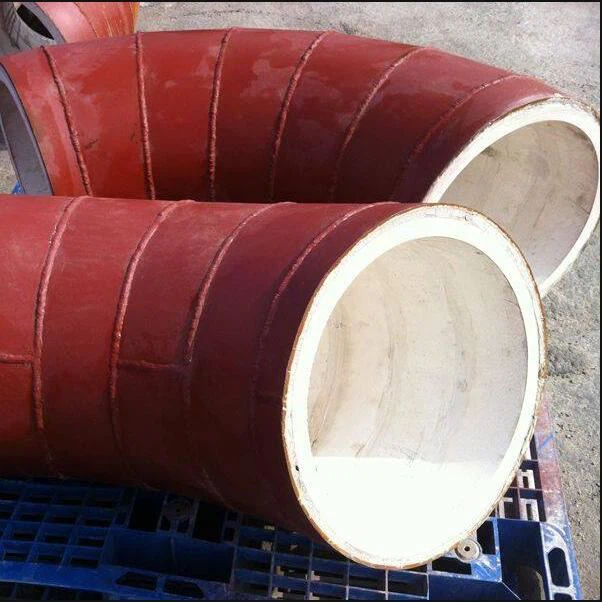

Abrasion resistant ceramic lined elbow is characterized by high wear resistance, high hardness, oxidation resistance, corrosion resistance and high temperature resistance.
It has become one of the most widely used wear-resistant materials, accounting for about 80% of the world special ceramic market share (wear-resistant materials).
Advantages
The ceramic lined elbow weighs light and the price is suitable. Less than 50 % lighter than the diameter cast stone tube; Compared with wear-resistant alloy pipe, it is 20-30% lighter, and it is durable and corrosion resistant, because it has long service life, so it can lower the cost, transportation, installation and running expenses.
Because of its light weight and good welding performance. Therefore, it can be used for welding, flanges and quick connections, which are convenient for installation and can reduce the installation cost.
Due to the steel ceramic layer (a-al2o3), it is a neutral quality. Therefore, it has the properties of acid and alkali resistance and seawater corrosion, which can prolong the life of pipeline.
Compositions
90 | 92 | 95 | 96 | |
Al2O3(%) | ≥90 | ≥92 | ≥95 | ≥96 |
Fe2O3(%) | ≤0.3 | ≤0.2 | ≤0.15 | ≤0.15 |
Hardness | ≥8 | ≥8 | ≥9 | ≥9 |
Porosity(%) | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 |
Density(g/cm3) | ≥3.50 | ≥3.60 | ≥3.65 | ≥3.65 |
