1.Product Introduction

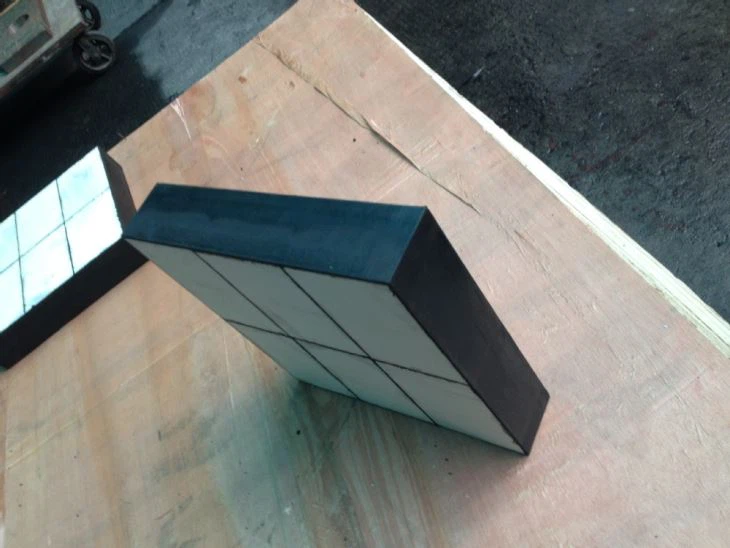

Good abrasion ceramic rubber lining plates are installed on equipment by welded methods (wear resistant rubber ceramic with steel plate) or by its highly adhesive (rubber ceramic wear liner).It was made up with alumina ceramic tiles and high adhesive rubber and sales well in Australia,Russia,Brazil,Chile.Compared with ordinary ceramic tiles, the Ceramic-rubber plate under the special process treatment changes the ceramic mechanism of easy breakage.
It is consist of natural rubber and wear resistant alumina ceramic.It is not only have highly abrasion resistant but also it has great strech.So it can protect the equipment.
2.Product Specifications
Technical data of alumina ceramic lining tile:
| Item | Index |
Alumina content | ≥92% |
Bulk Density | ≥3.62g/cm³ |
Mohs Hardness | ≥9 |
Compressive strength | ≥850MPa |
KIC fracture toughness | ≥4.8MPa.M1/2 |
Bending strength | ≥290MPa |
Thermal conductivity | 20W/m.k |
Coefficient of thermal expansion | 7.2×10-6m/×m.k |
Technical data of rubber:
| Item | Index |
Tensile Strength | ≥27MPa |
Break Extension | ≥300% |
Shore Hardness | 55±5 |
Break Permanent Deformation | ≤24% |
Rubber and Ceramic Adhesion | ≥3.0MPa |
Temperature | ≤100-300℃ |
Rubber Aging Life | ≥8 year |
Normal Standard sizes:
500*500*30mm(13mm thickness of the ceramic tiles,7mm thickness of the steel and 10mm rubber thickness)
500*188*37mm(25mm ceramic tiles,6mm steel and 6mm rubber)
302*302*10mm(6mm ceramic tiles and 4mm rubber)
316*476*43mm(25mm ceramic tiles,12mm steel and 6mm rubber)
3. Application
