Description
Chrome Carbide Overlay Wear Plate is made of Q235 steel plate as the substrate, and then chromium carbide is fused on the surface of the substrate by open arc welding, which is perfectly combined with the surface of the substrate to form a wear-resistant protective layer. The wear layer of chromium carbide wear-resisting plate is mainly chromium alloy, and manganese, molybdenum, niobium, nickel and other alloy components are also added. The carbide in the metallographic structure is distributed like fiber, and the direction of fiber is perpendicular to the surface. The microhardness of carbide can reach HV1700-2000 and the surface hardness can reach HRc58-62. Alloy carbide has a strong stability at high temperature, maintain high hardness, but also has a good oxidation resistance, within 500℃ completely normal use.
Technical Index
| Product Name | Chrome Carbide Overlay Wear Plate |
| Material | High chromium carbide overlay abrasion resistant steel |
| Thickness | 4+4 5+3 6+4 6+5 8+4 8+6 8+8 10+4 10+6 10+8 10+10 12+4 |
| 12+6 12+8 12+10 14+6 14+8 14+10 16+6 16+8 16+10 16+12 | |
| etc. or as customized | |
| Weldable Thickness | 3-20mm |
| Hardness | HRC 52-62 Wear deposite 3mm: HRC 52-58, 4mm: HRC 56-60,5mm:HRC 57-62，6mm:HRC 57-62,8mm:HRC 58-62,10mm: HRC 60-62,12mm:>HRC 62 HRC of 1 layer:52-58,2 layer: 58-62, Pure weld deposite: 62 |
| Surface Treatment | Hardfacing clading coated. |
| Technique | Advanced automatic self-shilded open arc welding |
| Chemical Composition of the wear deposite | Take 6+6 abrasion composite plate for example: C:4.3-4.8% Cr:23-30% Mn:0.8-1.1% Mo:0.08-0.18 Ni:0.08-0.15,Other Metal elements:Micro |
| Base Plate | Q235B,AIl weldable steels,mostly structural steels. |
| Feature | High wear resistance 12-20 times higher than common plate 5-10 times than low alloy steel plate 2-3 times than high chromium cast iron plate |
Advantages
1. It can withstand moderate impact and vibration, and prevent falling off.
2. It has good abrasiveness, high toughness and can be processed at will.
3. Easy to install, can be cut, welded, punched, bent.
4. High temperature resistance, can be used for 550 degrees, does not affect wear resistance.
Applications
1.Cement industry: separator blade, mixer blade, material sliding platform, internal grinding liner, air guide cone, feed pipeline, vibrating screen plate, silo, chute, cement vertical mill repair.
2.Fan industry: fan impeller, cyclone separator, fan blade, rear disk liner, fan port, easy to wear parts, etc.
3.Iron and steel metallurgy: Fabric chute, silo lining board, sliding inclined plane, screen screen, blast boiler bell hood, skip car, blast boiler strengthening steel plate, sintering feed cylinder, pipeline, distribution plate, slag trough, exhaust fan, blast furnace tank lining board, dry quenching coke tank lining board, coke pushing car lining board skateboard plate, single roll crusher of sintering machine, scraper, water beam and wall plate repair and production.
4.Coal industry: cone wear-resistant lining plate of wheel bucket excavator, scraper coal conveyor in the middle groove plate, feed trough, hopper, mine lifting skip, coal washing plant pipeline, chute.

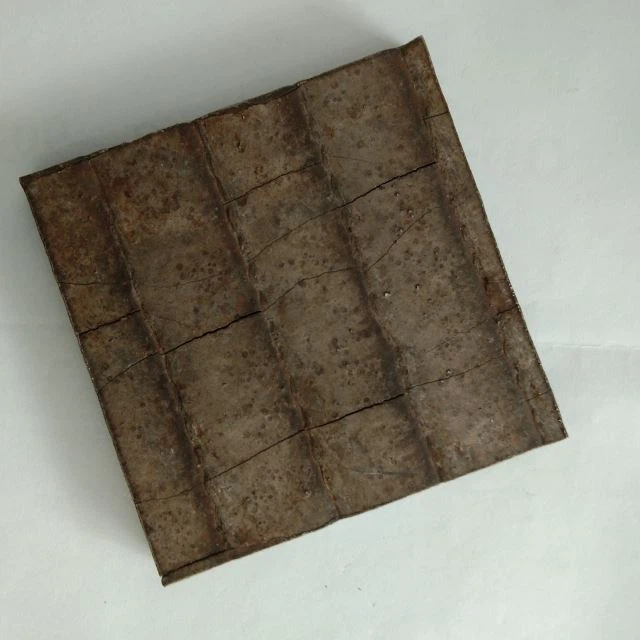

Pictures
